Temperature &humidity sensors

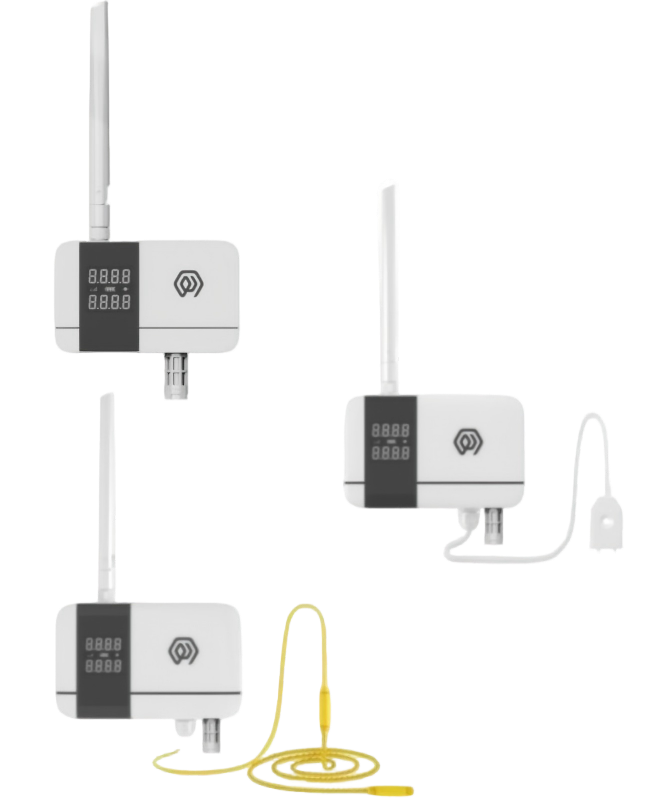

KS52-LoRaWAN Temperature and humidity sensors
The KS52 is a wireless temperature and humidity sensor that measures environmental temperature and humidity using a digital sensor, periodically transmitting the readings to an application platform via LoRa. Users can configure the sampling and reporting intervals using a handheld device or management platform, with a default setting of 0.5 hours. It supports both LoRaWAN and LinkWAN protocols and boasts an IP65 protection rating.
Features
- IP65 protection rating
- Battery powered, 10800mA high performance lithium battery, battery life can reach more than 6 years
- COV
- Low power LCD display
- Temperature accuracy : ±0.3℃
- Humidity Accuracy : ±3%RH
- Support ThinkLink/ChirpStack/TTN platform docking
- Support US902,AU915,AS923,EU868,EU433,CN470 LoRaWAN standard.
Product Details
Hardware Specifications
Interface | Joint Type | IP65 waterproof sensor (SHT41 package) |
Wiring quantity | 0 | |
Display | low power consumption segment code LCD | |
Measurement Accuracy
| Acquisition cycle | 5 seconds. |
Temperature accuracy | ± 0.3 ℃ | |
Humidity accuracy | ±3%RH | |
Wireless Parameters
| Communication Protocol | standard LoRaWAN ® Agreement |
Regional Standards | CN470/EU433/EU868/AS923/AU915/Us902 | |
Transmit power | maximum Support 22dBm (parameter can be changed) | |
Receiving sensitivity | -142dBm(SF=12,BW=125kHz) | |
Network access /Working mode | OTAA/ABP Class A | |
Agreement /Configuration | Test /Trigger mode | the magnet, 2 seconds trigger heartbeat data,>6 seconds trigger into the network |
Parameter Configuration | by NS issue instruction | |
Physical Characteristics
| Power supply mode | 4 2700 mA-hour ER14505 lithium battery |
Sleep current | <5uA (25 ℃ at room temperature) | |
Emission current | <110mA (22dBm transmit power) | |
Battery life | 6 years (15-minute reporting cycle, 25 ℃ at room temperature) | |
Working Temperature | -40°C ~85°C | |
Relative humidity | ≤ 95% (no condensation) | |
Protection level | IP65 | |
Material & Color | ABS + PC, White | |
Dimensions | 120mm * 72mm * 28mm | |
Installation method | Wall Hanging |
Application Scenarios
Agricultural Greenhouses
Data Centers
Museums
Cold Chain Storage
