PMC51xMini-PCIe LoRa gateway module

Integrate LoRa connectivity into your gateway.

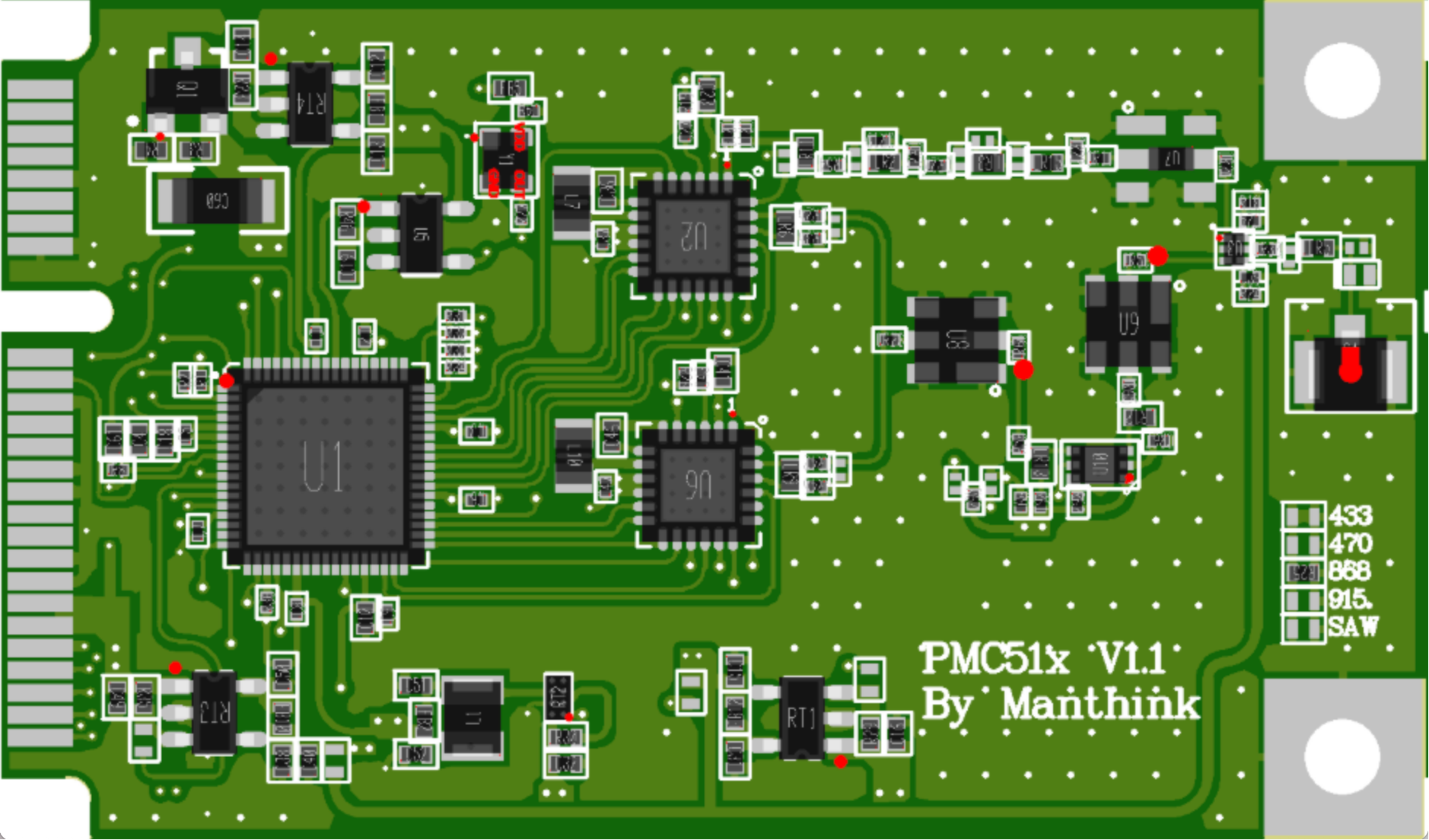

PMC51x is the LoRa radio module used in the GD6 series, with a Mini-PCIe form factor and an SPI host interface. Based on SX1302, it supports eight parallel receive paths and one transmit path for gateway hardware integration.

Product type: Gateway radio module
Form factor: Mini-PCIe
Host interface: SPI
Baseband chip: SX1302

01 / SPECIFICATIONS

Check every specification that matters.

Start with interfaces, power and installation conditions.

Read the full technical manual

PMC51x — Specifications
Product type	Gateway radio module
Form factor	Mini-PCIe
Host interface	SPI
Baseband chip	SX1302
Receive / transmit paths	8 RX / 1 TX
Spreading factors	SF5–SF12
Power supply	DC 3.3–5 V
Operating temperature	−40 to +85 °C
Overall dimensions	30.0 × 51.0 × 4.5 mm
Receive sensitivity	−141 dBm
Maximum transmit power	22 dBm
Operating mode	Half-duplex
Antenna connector	First-generation I-PEX
ThinkLink	Platform connection provided by the host

Source: PMC51x Official manual · Reviewed on 2026-10-14. Confirm options, regional bands and the complete model before ordering.

02 / CONNECTION

Match the interface.
Then connect the equipment.

Match physical interfaces and application protocols separately.

SPI host connection

Mini-PCIe describes the form factor; data uses SPI, and the host must support full-duplex SPI.

Timing and control

Supports external GPS PPS input, active-high reset and RX_ON / TX_ON / CFG_ON status signals.

RF connection

Uses a first-generation I-PEX connector; match the antenna band to the module model and deployment region.

For terminal positions, wire assignments and installation, follow the official wiring instructions .

03 / CONFIGURATION

Choose a configuration
that fits your site.

01PMC514-433-N: EU433; PMC514-470-N: CN470.

02PMC518-868-N: EU868; PMC518-915-N: AS923 / AU915 / US915 / KR920.

03The 4 / 8 in PMC514 / PMC518 identifies the frequency family, not the number of channels.

04A pin-compatible SX1303 is available as a custom option; the module requires a host and gateway software.

Visit the official store Ask about PMC51x ↗

The store and manuals open in a new tab. Available configurations are subject to confirmed order details.
