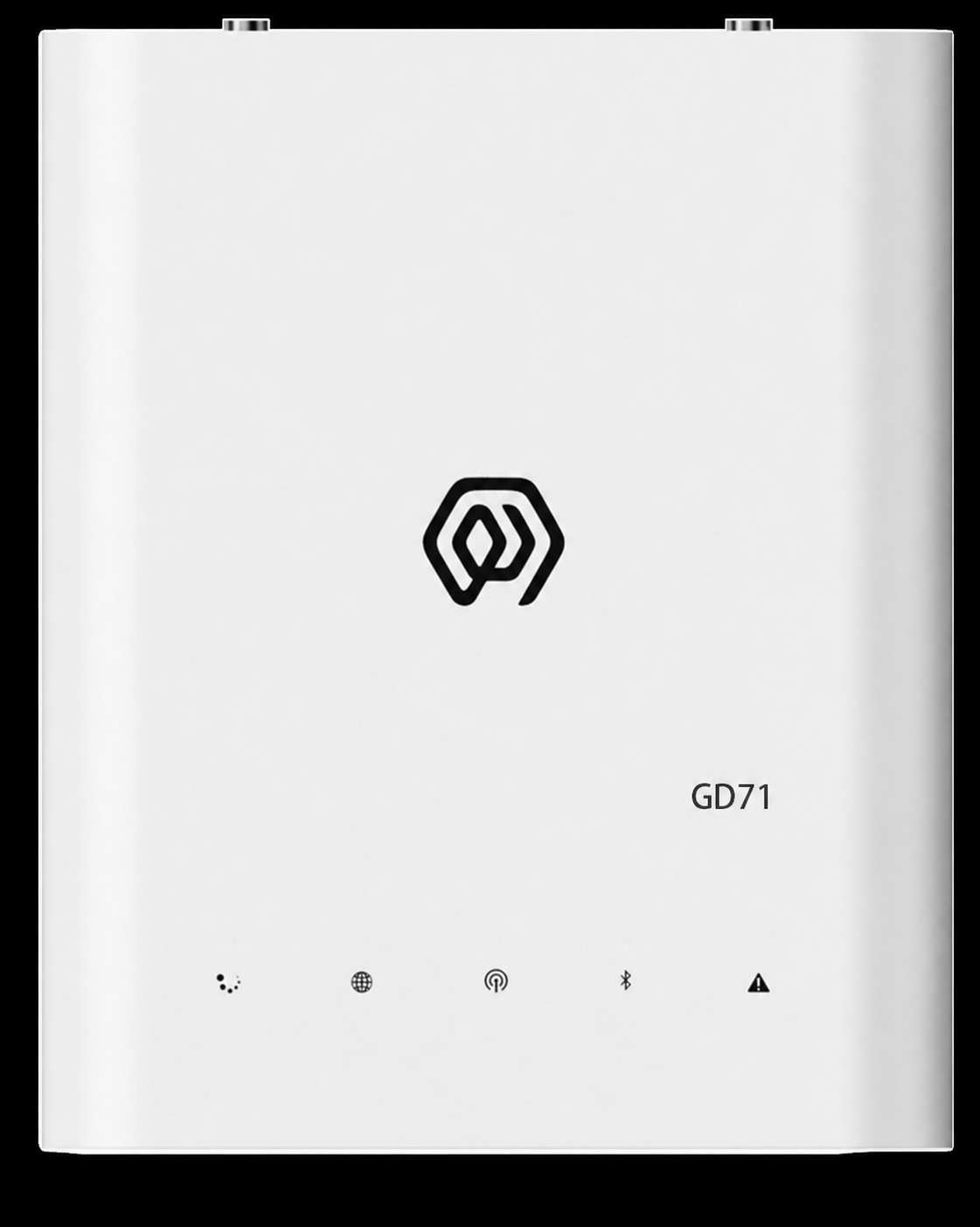

GD71Indoor LoRaWAN gateway

From wireless access to local applications.

Includes the ThinkLink network server and IoT platform, with data buffering and local applications. Configure and maintain it with gwTool7. Quad-core processor, 1 GB RAM and 16 GB eMMC, running Ubuntu with the full ThinkLink platform built in.

Hardware: Quad-core · 1 GB RAM · 16 GB eMMC
System: Ubuntu
ThinkLink: Full ThinkLink built in
Deployment environment: Indoor

01 / SPECIFICATIONS

Check every specification that matters.

Start with interfaces, power and installation conditions.

Read the full technical manual

GD71 — Specifications
Deployment environment	Indoor
Backhaul	Ethernet / Wi-Fi / 4G LTE
Power supply	PoE / PoE+ / Type-C 5 V
Ingress protection	IP53
Concentrator	Semtech SX1302
Operating temperature	−20～65 ℃
Mounting	Wall mount / Desktop
Dimensions	151 × 125 × 30 mm
Processor	Quad-core processor
ThinkLink	Full ThinkLink built in
RAM	1 GB
Storage	16 GB eMMC
Operating system	Ubuntu

Source: GD71 Official manual · Reviewed 2026-09-25. Confirm options, regional frequency bands and full model codes before ordering.

02 / CONNECTION

Match the interface.
Then connect the equipment.

Match physical interfaces and application protocols separately.

Ethernet and power

RJ45 provides Ethernet and the supported PoE supply; use power compatible with the delivered version.

Field interfaces

Install antennas, SIM and local service connections according to the official manual.

For terminal positions, wire assignments and installation, follow the official wiring instructions .

03 / CONFIGURATION

Choose a configuration
that fits your site.

01Select the LoRaWAN band, transmit-power variant and cellular configuration for the deployment region.

02Select this product for indoor installation; enclosure material is not a substitute for its protection rating.

Visit the official store Ask about GD71 ↗

The store and manuals open in a new tab. Available configurations are subject to confirmed order details.
